END Element

END Element

The End Element is used to terminate the logical execution of a system or Drawing Function.

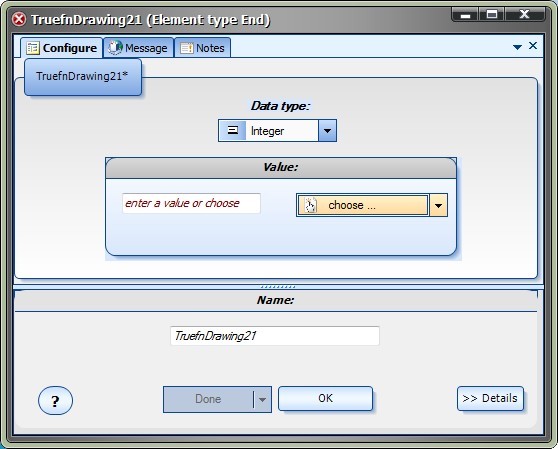

Selecting the configuration (+) button of a End Element will display the End Configuration Window.

There are up to four tabs on the End Configuration Window:

The Configure Tab is used to set the data type and value of an End Element.

The Message Tab is used to send a message from the End Element.

The Notes Tab is used to add notes or comments to the End Element.

The bottom portion of the window allows the Element Name to be saved.
