Candlestick Function Parameters


After a Candlestick function has been added to a Drawing, it is configured by clicking the (+) button along the bottom of the Element.


The Function Configuration window allows you to select values for each parameter.


All Candlestick functions have the parameters Symbol, Timeframe and Shift.


Parameter Name

Data type

Description

Symbol

String

The symbol of the currency to search for the pattern, such as EURUSD, USDJPY, etc.

Timeframe

Integer

The timeframe of the currency to search for the pattern. MetaTrader supports values from 1 minute (PERIOD_M1) to 1 month (PERIOD_MN1).

Shift

Integer

The candle index at which to start searching for the pattern.  Zero starts at the currently forming candle, one starts at one candle to the left, etc.


Candlestick functions that use the terms "long" or "short" have the additional parameters longbody and shortbody.


Parameter Name

Data type

Description

longbody

double

The minimum value of a candle body to be determined as long.

shortbody

double

The maximum value of a candle body to be determined as short.



If the value of longbody is left as 0 (the default value), the candle function will automatically calculate the minimum longbody value as 2 times the 4-period ATR (average true range) for the given symbol and timeframe:

2 * iATR( symbol, timeframe, shift )



If the value of shortbody is left as 0 (the default value), the candle function will automatically calculate the maximum shortbody value as the 4-period ATR (average true range) for the given symbol and timeframe:

iATR( symbol, timeframe, shift )


The longbody and shortbody parameters can be set to any value using any combination of arithmetic and/or MetaTrader platform functions.

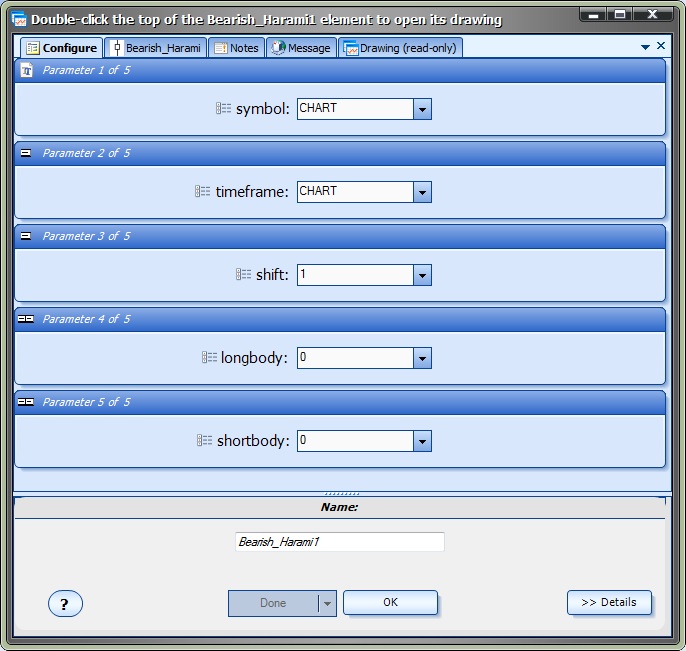

This is the candle function configuration window for the Bearish Harami candlestick pattern:.
